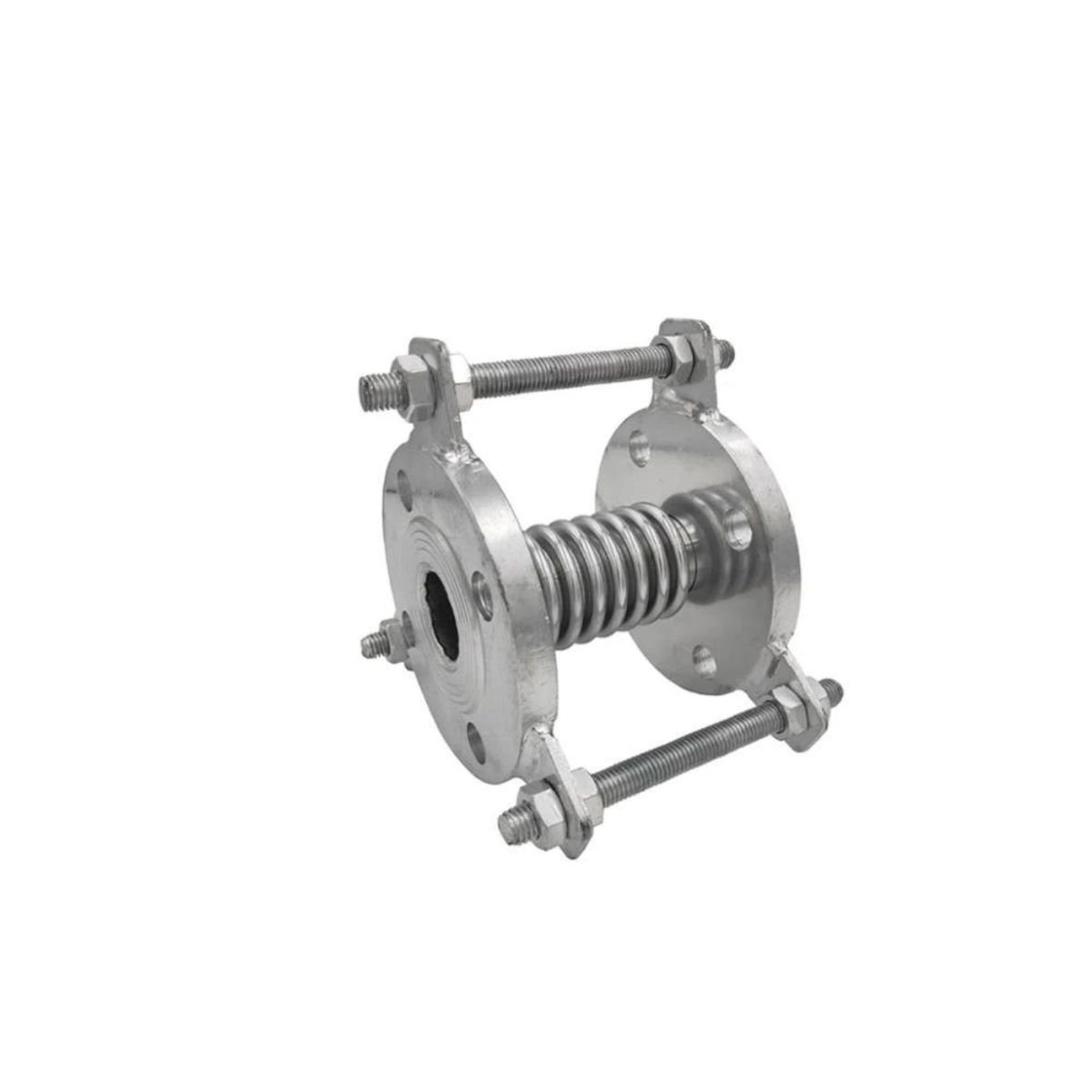

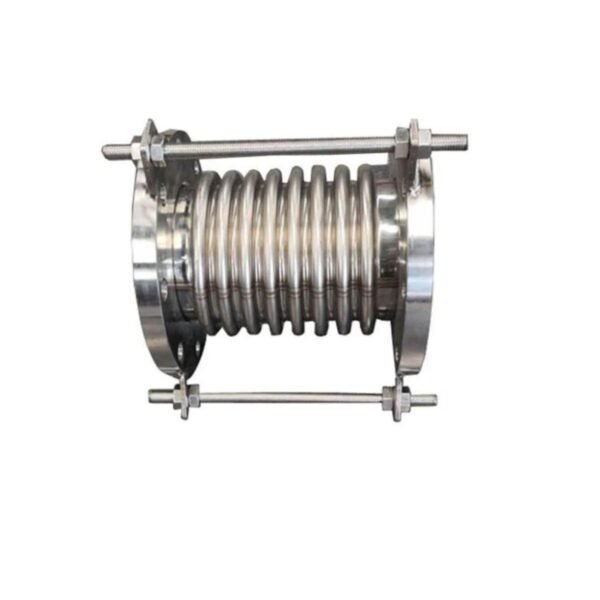

Pipe Bellows Expansion Joint
Pipe bellows expansion joint provides perfect balance between value and performance The pipe bellows expansion joints provides the perfect balance between value and performance. With many different standard lengths and three pressure ratings available, Model MNLC can be delivered quickly. Non-standard…To increase both flexibility and stability, multiple thin plies of metal are layered to form the bellow walls.
Category: Metal Bellows
Description
Description
Product Parameter
Product Name | Pipe bellows expansion joint |
Material | Stainless Steel SUS304,SS316, SS312 etc |
Flange Standard | DIN ,ANSI ,BS, SABS, JIS10k, KS |
Usage | Shipbuilding, Metallurgy, Electricity |
Work Temperature | -40℃+800℃ |
Size Available | Θ25mm-θ50000mm |
Work Pressure | Resistance to high and very high pressures |
Bellows layers | 1-6 Layers |
Feature | Eliminate the pipeline residual stress |
Parts | Flange Bellows Internal Sleeve Tie-rod Pipe end Nut |
Surface | Carbon Steel Flange Galvanized OR AL Painted |
Joint Type | Axial, Universal, Angular & Lateral-as per requirement |
