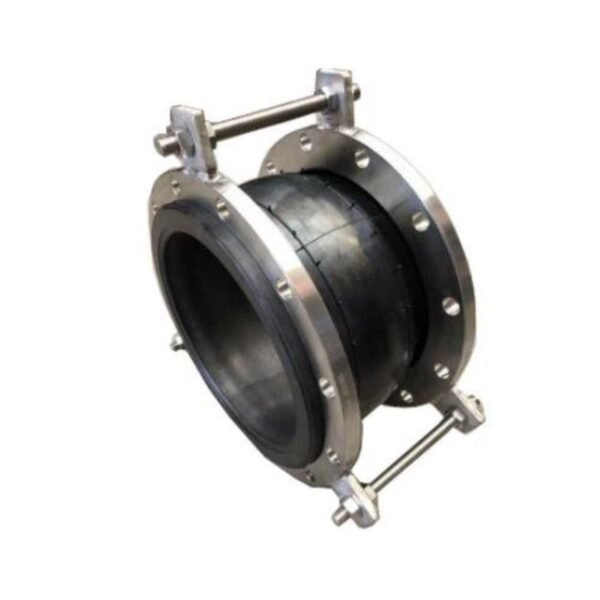

JGD-WD German Standard Flexible Rubber Joint
Applicatioin of JGD-WD German Standard Flexible Rubber Joint : Widely used in water and wastewater, recycled water, fire fighting, paper, pharmaceutical, petrochemical, shipping, pumps, compressors, fans and other piping systems, use of units such as power plants, water plants, mills, water…
Description
Applicatioin of JGD-WD German Standard Flexible Rubber Joint : Widely used in water supply and waste water, circulating water, fire, papermaking, pharmaceutical, petrochemical, ship, pump, compressor, fan and other pipeline systems, used in power plants, waterworks, waterworks, water companies, engineering and high-rise building units.Media of JGD-WD German Standard Flexible Rubber Joint :Common type used to transport -15 — 80 centigrade air, compressed air, water, sea water, oil, acid and alkali. Special type used to transport -30– 140 centigrade over the medium or oil, strong alkali acid concentration, solid-state materials
Recommendation : Selecting JGD-WD German Standard Flexible Rubber Joint
| O. | NAME. | Material |
| 1 | Inner and outer rubber | NR,EPDM,NBR |
| 2 | Key frame | Nylon Cord Fabric |
| 3 | booster ring | Steel Wire Strand |
| 4 | Flange | Q235 |

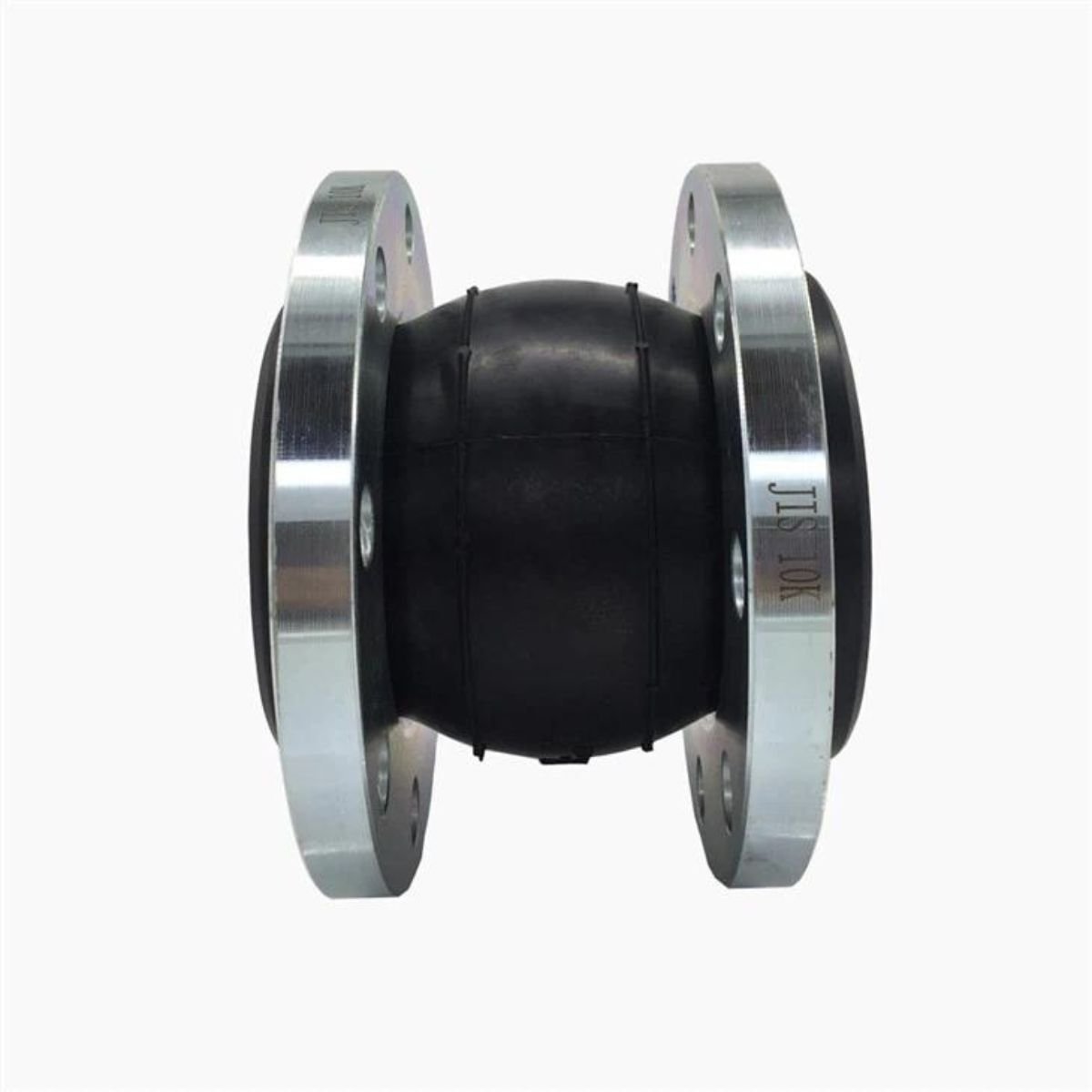

Double Flanged EPDM rubber expansion joint ANSI 150LB/PN16/10K Condition:
| Size | I | II | III |
| working pressure MPa(Kgf/cm2) | 1(10) | 1.6(16) | 2.5(25) |
| Explosion pressure MPa(Kgf/cm2) | 3.0(30) | 4.8(48) | 5.5(55) |
| Vacuum KPa(mmHg) | 53.3(400) | 86.7(650) | 100(750) |
| Tempreture | -15–80 centigrade ,customer made type could reach to -30–120 centigrade | ||
