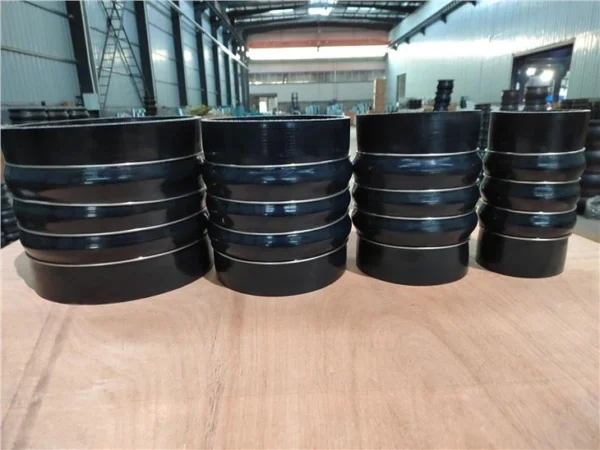

China factory Flexible drainage connector , rubber hose with Outstanding Flexibility : Owing to the characteristic of the high quality rubber and bias reinforcement, a moderate length Flexible drainage connector provides up to 50mm lateral displacement. This outstanding drainage connector allows the Flexidrain to be the best choice in drainage and other low pressure system.
Underground Application : Incorporated with steel reinforcing rings enable Flexidrain buried underground up to 1.5 M. without deform or failure. Flexible drainage connector eliminates additional protection which is required by ordinary rubber joints. Easy Installation : insert type end connection fixed by stainless steel hose clamp reduces installation cost and time. Flexible drainage connector can be installed in series to provide greater displacement for critical application

and pipe expansion.
Working Pressure : 1 Kgf/cm2 or below Testing Pressure : 3 Kgf/cm2 (Max.)
Working Temperature : -10oC to 60oC Applicable Fluid : Water, Drainage, and Non-Corrosive SeweragFlexible drainage connector

 DIMENSION AND ALLOWABLE MOVEMENT
