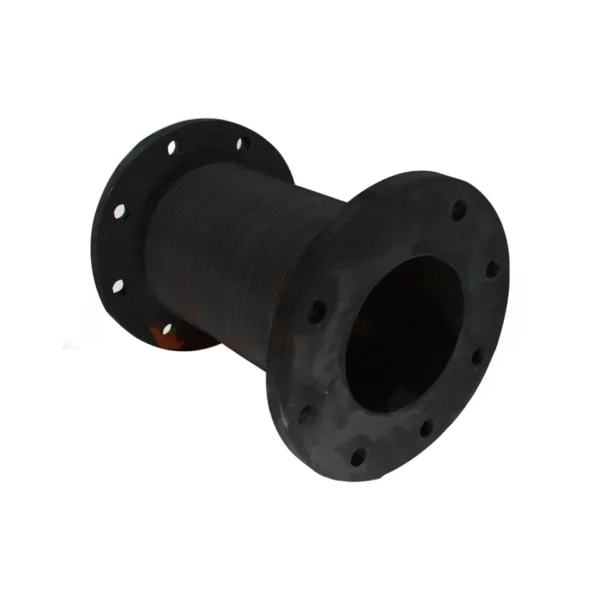

Flange Type Rubber Hose
Flange Type Rubber Hose is a versatile and reliable pipeline connector with several advantages for various industries. Its customization options, material choices, flexibility, and resistance make it a popular choice for many application.
Description
Flange Type Rubber Hose is a type of pipeline connector, mainly composed of a rubber hose, steel wire mesh, and two flanges. This type of hose is used to connect two pipelines or equipment and can be used in various industries to transport liquids, gases, or powdery materials. In addition, This product can also resist pressure, bending, vibration, and wear, making it very popular in some demanding industrial applications.
Flange Type Rubber Hose is a versatile and reliable pipeline connector with several advantages for various industries. Its customization options, material choices, flexibility, and resistance make it a popular choice for many application
Product parameters
| Nominal inner diameter D mm |
Thickness of internal rubber layer t2(Reference value) mm |
Extemal diameter of ring flange D1 mm |
Extemal diameter of ring flange t1 mm |
Thickness of joint thread t (Reference value)mm |
Screw | ||
| Center circle diamter C mm |
Number n | Diameter h mm | |||||
| 205±3 | 10 | 320 | 12±2 | 6 | 280±1.0 | 8 | 23±1 |
| 254±3 | 385 | 345±1.0 | 12 | ||||
| 305±5 | 430 | 390±1.0 | |||||
| 338±5 | 480 | 19±2 | 435±1.0 | ||||
| 388±5 | 540 | 495±1.0 | 16 | ||||
| 510±5 | 15 | 710 | 9 | 650±1.0 | |||
| 560±5 | 765 | 690±1.0 | 18 | ||||
| 610±5 | 20 | 914 | 22±2 | 750±1.0 | 20 | ||
| 630±5 | 934 | 765±1.0 | 25±1 | ||||
| 660±5 | 870 | 780±1.0 | 24 | ||||
| 700±5 | 905 | 25±2 | 840±1.0 | 27±1 | |||
| 710±5 | 930 | 28±2 | 860±1.0 | ||||
| 760±5 | 990 | 900±1.0 | 30±1 | ||||
| 800±5 | 25 | 1050 | 32±2 | 12 | 970±1.0 | 32 | |
| 840±5 | 1090 | 1010±1.0 | |||||
| 860±5 | 1090 | 1010±1.0 | |||||
Advantage
1. that it can be customized in terms of model and specifications to meet various pipeline connection requirements. Flange Type Rubber Hose is widely used in industrial fluid transmission and connection fields in chemical, petroleum, shipping, machinery, construction, and other industries.
2. that it can use materials other than conventional rubber, such as nitrile rubber, neoprene, polyurethane, or silicone rubber, according to requirements. These materials have different chemical properties and characteristics, allowing them to be used in different environments and application scenarios.
3. its excellent elasticity and flexibility, allowing for easy installation, disassembly, cleaning, and maintenance. This greatly reduces downtime and improves production efficiency.
4. This Product has the advantage of being able to resist pressure, bending, vibration, and wear, making it a reliable choice for demanding industrial applications.
