Description

The advantage of rubber joint is that it can reduce vibration and pressure, reduce noise, and make use of the unique properties of rubber, such as high elasticity, high air tightness, medium and radiation. It uses high strength and strong cold and hot stability polyester cord fabric diagonal composite. It is cross-linked by high pressure and high temperature molding, with high internal density. The rubber can withstand high pressure, and has good elastic deformation effect. The product structure is designed with high end arc, long curve, and large displacement function.

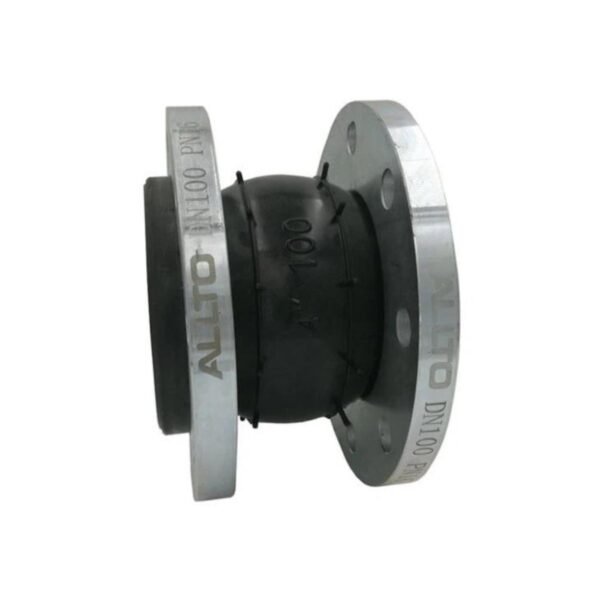

Applicable to other standard or non-standard flanges.DN100 rubber expansion joints need to be separately negotiated.Please indicate the drawing standards and related parameters.We will produce accordingly.Rubber material can be chosen according to your requirement.Corrosion resistance: EPDM, NBR high temperature and corrosion resistance.Double spherical flange DN100 rubber expansion joint: rubber body has two Bridges.DN100 rubber expansion joints bear greater pressure and longer length than single ball rubber expansion joints.

DN100 Rubber Expansion Joint Detail:

1. Nominal diameter(mm): 32~1200

2. Suitable temperature(°C): -20°C~120°C3.

3. Nominal pressure(Mpa): 1.0/1.6 4.

4. Testing seal pressure(Mpa): 1.1/1.76 5.

5.Flange connection according to DIN PN10/16, ANSI 125#/150#, BS4504 PN10/16, EN1092-2, JB/T T9-2015 ect.

6. Test standard: API 598

7. Suitable medium: Drinking water,sewage,seawater,food,medicines,gas,oil and acid.
